本文介绍使用spire.xls for java在excel中创建分离型饼图及环形图的方法。

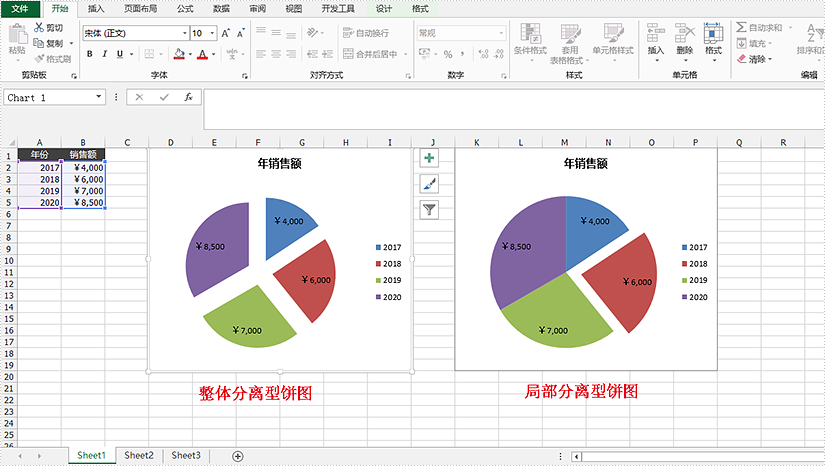

分离型饼图

import com.spire.xls.*;
import com.spire.xls.charts.chartserie;
import java.awt.*;
public class explodedpiechart {
    public static void main(string[] args) {
        //创建workbook对象
        workbook workbook = new workbook();
        //获取第一个工作表
        worksheet sheet = workbook.getworksheets().get(0);
        //将图表数据写入工作表
        sheet.getcellrange("a1").setvalue("年份");
        sheet.getcellrange("a2").setvalue("2017");
        sheet.getcellrange("a3").setvalue("2018");
        sheet.getcellrange("a4").setvalue("2019");
        sheet.getcellrange("a5").setvalue("2020");
        sheet.getcellrange("b1").setvalue("销售额");
        sheet.getcellrange("b2").setnumbervalue(4000);
        sheet.getcellrange("b3").setnumbervalue(6000);
        sheet.getcellrange("b4").setnumbervalue(7000);
        sheet.getcellrange("b5").setnumbervalue(8500);
        //设置单元格样式
        sheet.getcellrange("a1:b1").setrowheight(15);
        sheet.getcellrange("a1:b1").getcellstyle().setcolor(color.darkgray);
        sheet.getcellrange("a1:b1").getcellstyle().getexcelfont().setcolor(color.white);
        sheet.getcellrange("a1:b1").getcellstyle().setverticalalignment(verticalaligntype.center);
        sheet.getcellrange("a1:b1").getcellstyle().sethorizontalalignment(horizontalaligntype.center);
        sheet.getcellrange("b2:c5").getcellstyle().setnumberformat("\"￥\"#,##0");
        //添加整体分离型饼图
        chart piechart = sheet.getcharts().add(excelcharttype.pie);
        //设置图表数据区域
        piechart.setdatarange(sheet.getcellrange("b2:b5"));
        piechart.setseriesdatafromrange(false);
        //设置图表位置
        piechart.setleftcolumn(4);
        piechart.settoprow(1);
        piechart.setrightcolumn(10);
        piechart.setbottomrow(20);
        //设置图表标题
        piechart.setcharttitle("年销售额");
        piechart.getcharttitlearea().isbold(true);
        piechart.getcharttitlearea().setsize(12);
        //设置系列标签
        chartserie cs = piechart.getseries().get(0);
        cs.setcategorylabels(sheet.getcellrange("a2:a5"));
        cs.setvalues(sheet.getcellrange("b2:b5"));
        cs.getdatapoints().getdefaultdatapoint().getdatalabels().hasvalue(true);
        piechart.getplotarea().getfill().setvisible(false);
        //设置饼图整体分离
        for (int i = 0; i < piechart.getseries().getcount(); i  )
        {
            piechart.getseries().get(i).getdataformat().setpercent(20);
        }
        //添加局部分离型饼图
        chart piechart1 = sheet.getcharts().add(excelcharttype.pie);
        piechart1.setdatarange(sheet.getcellrange("b2:b5"));
        piechart1.setseriesdatafromrange(false);
        piechart1.setleftcolumn(11);
        piechart1.settoprow(1);
        piechart1.setrightcolumn(17);
        piechart1.setbottomrow(20);
        piechart1.setcharttitle("年销售额");
        piechart1.getcharttitlearea().isbold(true);
        piechart1.getcharttitlearea().setsize(12);
        chartserie cs1 = piechart1.getseries().get(0);
        cs1.setcategorylabels(sheet.getcellrange("a2:a5"));
        cs1.setvalues(sheet.getcellrange("b2:b5"));
        cs1.getdatapoints().getdefaultdatapoint().getdatalabels().hasvalue(true);
        piechart1.getplotarea().getfill().setvisible(false);
        //设置饼图局部分离
        piechart1.getseries().get(0).getdatapoints().get(1).getdataformat().setpercent(20);
        //保存文档
        workbook.savetofile("explodedpiechart.xlsx", excelversion.version2016);
        workbook.dispose();
    }
}

分离型环形图

import com.spire.xls.*;
import com.spire.xls.charts.chartserie;
import java.awt.*;
public class explodeddoughnutchart {
    public static void main(string[] args) {
        //创建workbook对象
        workbook workbook = new workbook();
        //获取第一个工作表
        worksheet sheet = workbook.getworksheets().get(0);
        //将图表数据写入工作表
        sheet.getcellrange("a1").setvalue("年份");
        sheet.getcellrange("a2").setvalue("2017");
        sheet.getcellrange("a3").setvalue("2018");
        sheet.getcellrange("a4").setvalue("2019");
        sheet.getcellrange("a5").setvalue("2020");
        sheet.getcellrange("b1").setvalue("销售额");
        sheet.getcellrange("b2").setnumbervalue(4000);
        sheet.getcellrange("b3").setnumbervalue(6000);
        sheet.getcellrange("b4").setnumbervalue(7000);
        sheet.getcellrange("b5").setnumbervalue(8500);
        //设置单元格样式
        sheet.getcellrange("a1:b1").setrowheight(15);
        sheet.getcellrange("a1:b1").getcellstyle().setcolor(color.darkgray);
        sheet.getcellrange("a1:b1").getcellstyle().getexcelfont().setcolor(color.white);
        sheet.getcellrange("a1:b1").getcellstyle().setverticalalignment(verticalaligntype.center);
        sheet.getcellrange("a1:b1").getcellstyle().sethorizontalalignment(horizontalaligntype.center);
        sheet.getcellrange("b2:c5").getcellstyle().setnumberformat("\"￥\"#,##0");
        //添加环形图
        chart chart = sheet.getcharts().add(excelcharttype.doughnut);
        //设置图表数据区域
        chart.setdatarange(sheet.getcellrange("b2:b5"));
        chart.setseriesdatafromrange(false);
        //设置图表位置
        chart.setleftcolumn(4);
        chart.settoprow(1);
        chart.setrightcolumn(10);
        chart.setbottomrow(20);
        //设置图表标题
        chart.setcharttitle("年销售额");
        chart.getcharttitlearea().isbold(true);
        chart.getcharttitlearea().setsize(12);
        //设置系列标签
        chartserie cs = chart.getseries().get(0);
        cs.setcategorylabels(sheet.getcellrange("a2:a5"));
        cs.setvalues(sheet.getcellrange("b2:b5"));
        cs.getdatapoints().getdefaultdatapoint().getdatalabels().hasvalue(true);
        chart.getplotarea().getfill().setvisible(false);
        //添加分离型环形图
        chart chart1 = sheet.getcharts().add(excelcharttype.doughnutexploded);
        chart1.setdatarange(sheet.getcellrange("b2:b5"));
        chart1.setseriesdatafromrange(false);
        chart1.setleftcolumn(11);
        chart1.settoprow(1);
        chart1.setrightcolumn(17);
        chart1.setbottomrow(20);
        chart1.setcharttitle("年销售额");
        chart1.getcharttitlearea().isbold(true);
        chart1.getcharttitlearea().setsize(12);
        chartserie cs1 = chart1.getseries().get(0);
        cs1.setcategorylabels(sheet.getcellrange("a2:a5"));
        cs1.setvalues(sheet.getcellrange("b2:b5"));
        cs1.getdatapoints().getdefaultdatapoint().getdatalabels().hasvalue(true);
        chart1.getplotarea().getfill().setvisible(false);
        //保存文档
        workbook.savetofile("explodeddoughnutchart.xlsx",fileformat.version2013);
        workbook.dispose();
    }
}
